CAT Rack

 323.30

In stock

A rack mount unit with 12 XLR channels capable of sending balanced analog audio, digital, DMX, and Clear-Com signals over shielded CAT5 cable. Available in Male or Female.

The SoundTools CAT Rack  allows you to run mic level, line level analog, AES3, DMX and/or com down a single Cat5e, Cat6, or Cat7 cable.

  • Male /  Female XLR configuration
  • Compatible with analog, DMX, AES3 and intercom
  • 12 channels of balanced audio over Cat5
Dimensions 64 x 480 x 45 mm 725 g
Package 83 x 500 x 51 mm 907 g

This product is covered by SoundTools warranty. Find out more here: “Happy Human” warranty.

Express shipping times:
(once dispatched)

Europe 1-2 days
North America 3-4 days
Rest of the world 4-7 days

All deliveries are made by FedEx, DHL or TNT, and are sent using a signed and tracked service.

The SoundTools CAT Rack  allows you to run mic level, line level analog, AES3, DMX and/or com down a single Cat5e, Cat6, or Cat7 cable.

  • Male /  Female XLR configuration
  • Compatible with analog, DMX, AES3 and intercom
  • 12 channels of balanced audio over Cat5
Dimensions 64 x 480 x 45 mm 725 g
Package 83 x 500 x 51 mm 907 g

This product is covered by SoundTools warranty. Find out more here: “Happy Human” warranty.

Express shipping times:
(once dispatched)

Europe 1-2 days
North America 3-4 days
Rest of the world 4-7 days

All deliveries are made by FedEx, DHL or TNT, and are sent using a signed and tracked service.

Mount your CAT Rack on standard 19″ rack rails, using the reversable ears for XLR or etherCON side out (remove screws to reverse rack ears). Attach your shielded CAT5 cables in the input or parallel etherCON connection on the back of each section of the CAT Rack. Attach your XLR cable ends to channels 1, 2, 3, or 4 in each section A, B, and C. Now you can run up to twelve lines of audio down three shielded CAT5 cables.

Pair with an additional CAT Rack or CAT Snake to send and receive up to 12 lines of balanced audio.

Application guides:

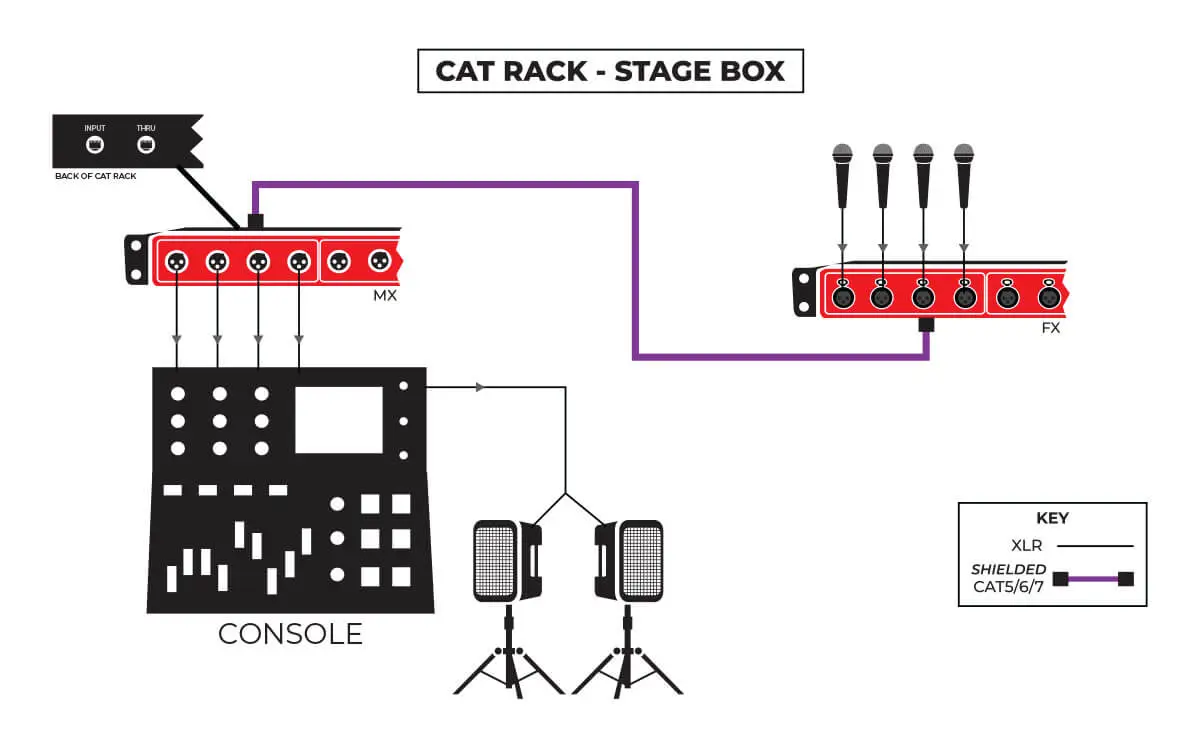

CAT Rack - stage box

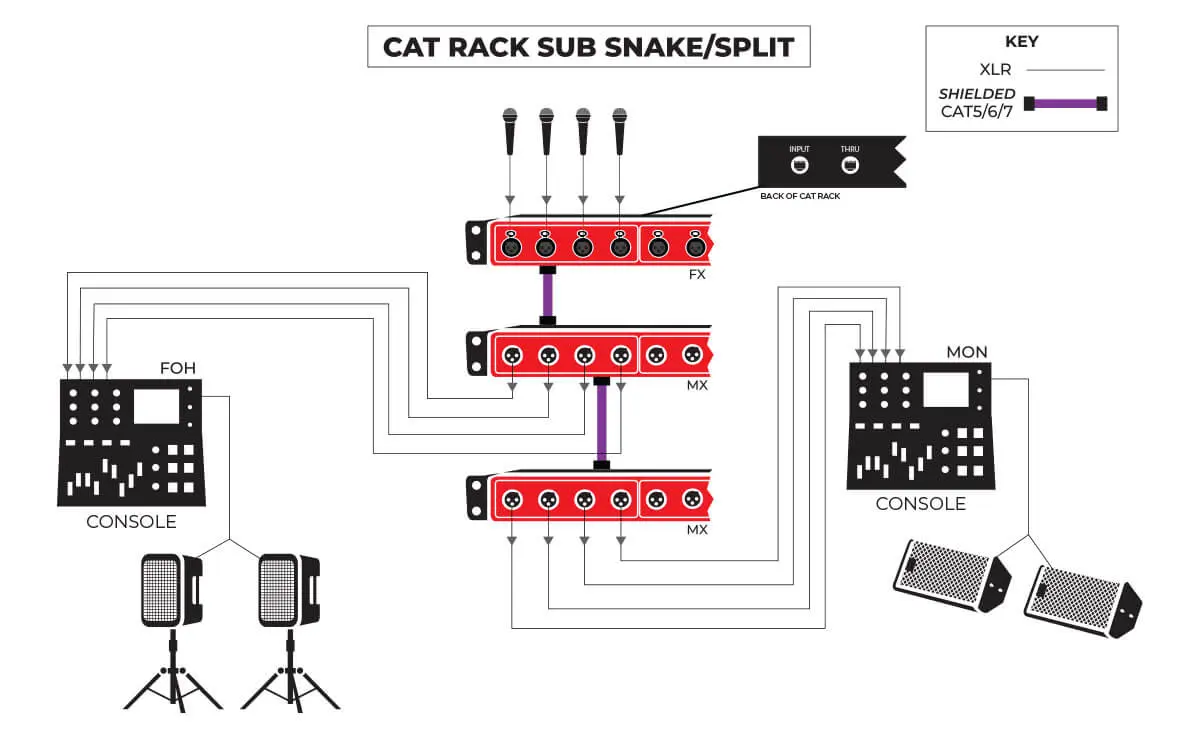

CAT Rack - sub/snake split

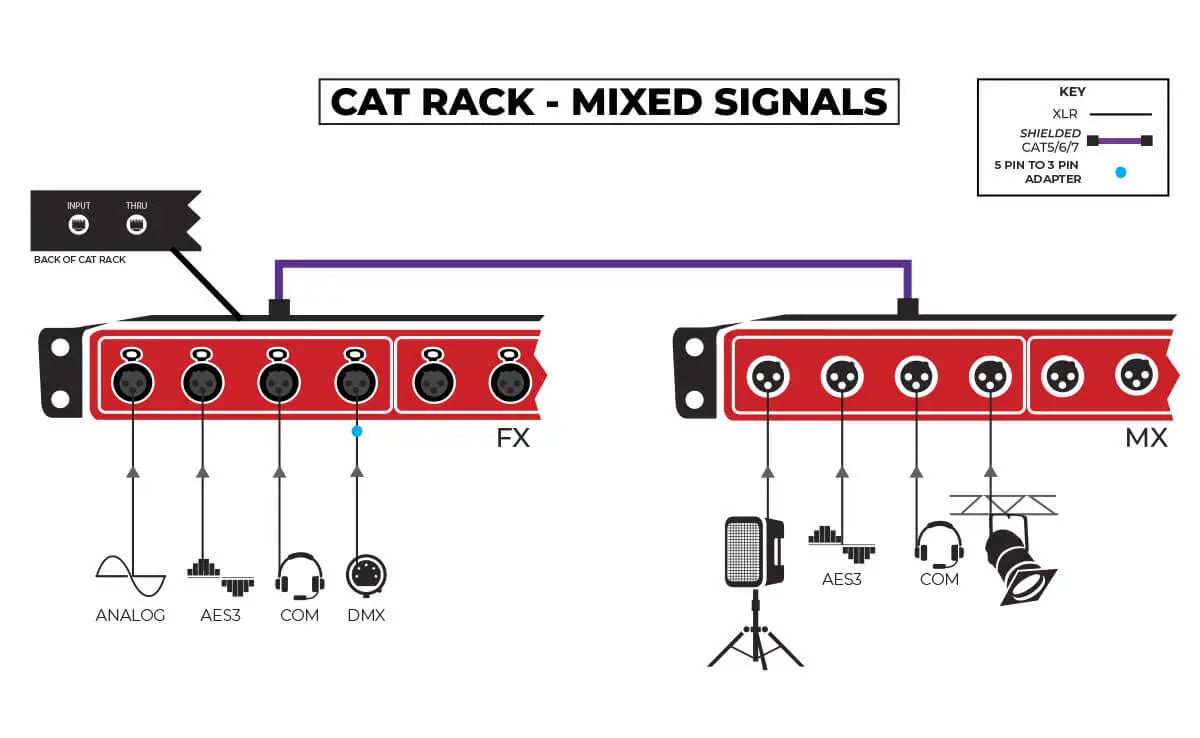

CAT Rack - mixed signals

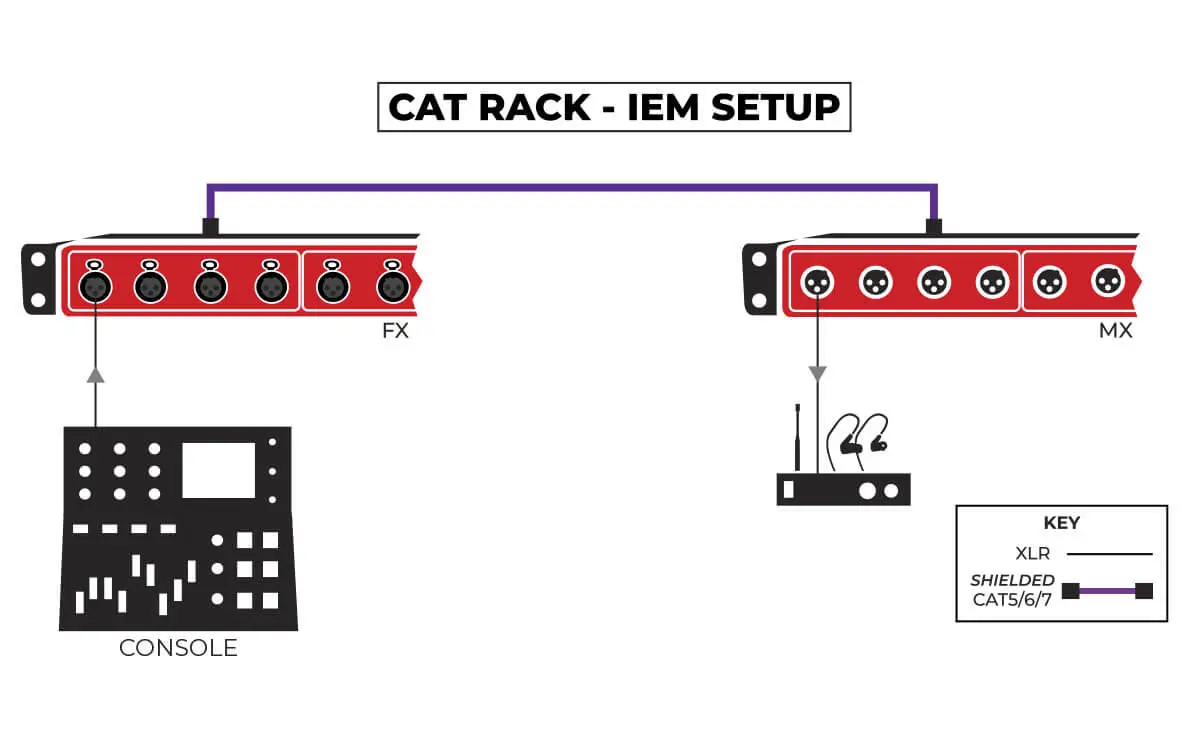

CAT Rack - IEM setup
